SCH333/350K-T-EU
Three-Phase String Inverter 333/350kW • 15 MPPTs • 1500Vdc System
Efficient
15 MPPTs with Max. Efficiency 99.00%;
Max. input current 20A per string,compatible with 700Wp+ module;
Superb temperature performance, full power at 45℃
Max. input current 20A per string,compatible with 700Wp+ module;
Superb temperature performance, full power at 45℃
Smart
Comprehensive range of communication interfaces [PLC /Wi-Fi / RS485(Standard)]；
Q at night (SVG) function;
Smart string monitoring based on I-V curve scanning and diagnosis
Q at night (SVG) function;
Smart string monitoring based on I-V curve scanning and diagnosis
Safety
IP66&C5 protection;
Type II SPD for both DC and AC;
Built-in anti-PID and PID recovery function;
Smart DC controllable switch, fast and automatic fault breaking
Type II SPD for both DC and AC;
Built-in anti-PID and PID recovery function;
Smart DC controllable switch, fast and automatic fault breaking
Document Read More >
-
SCH333/350K-T-EU_PV Inverter_User Manual_EN_Rev2.0Send to Email Download View
2025.06.17Size：9195KB
-
SCH333/350K-T-EU_PV Inverter_Quick Guide_EN_Rev3.0Send to Email Download View
2025.06.17Size：8808KB
-

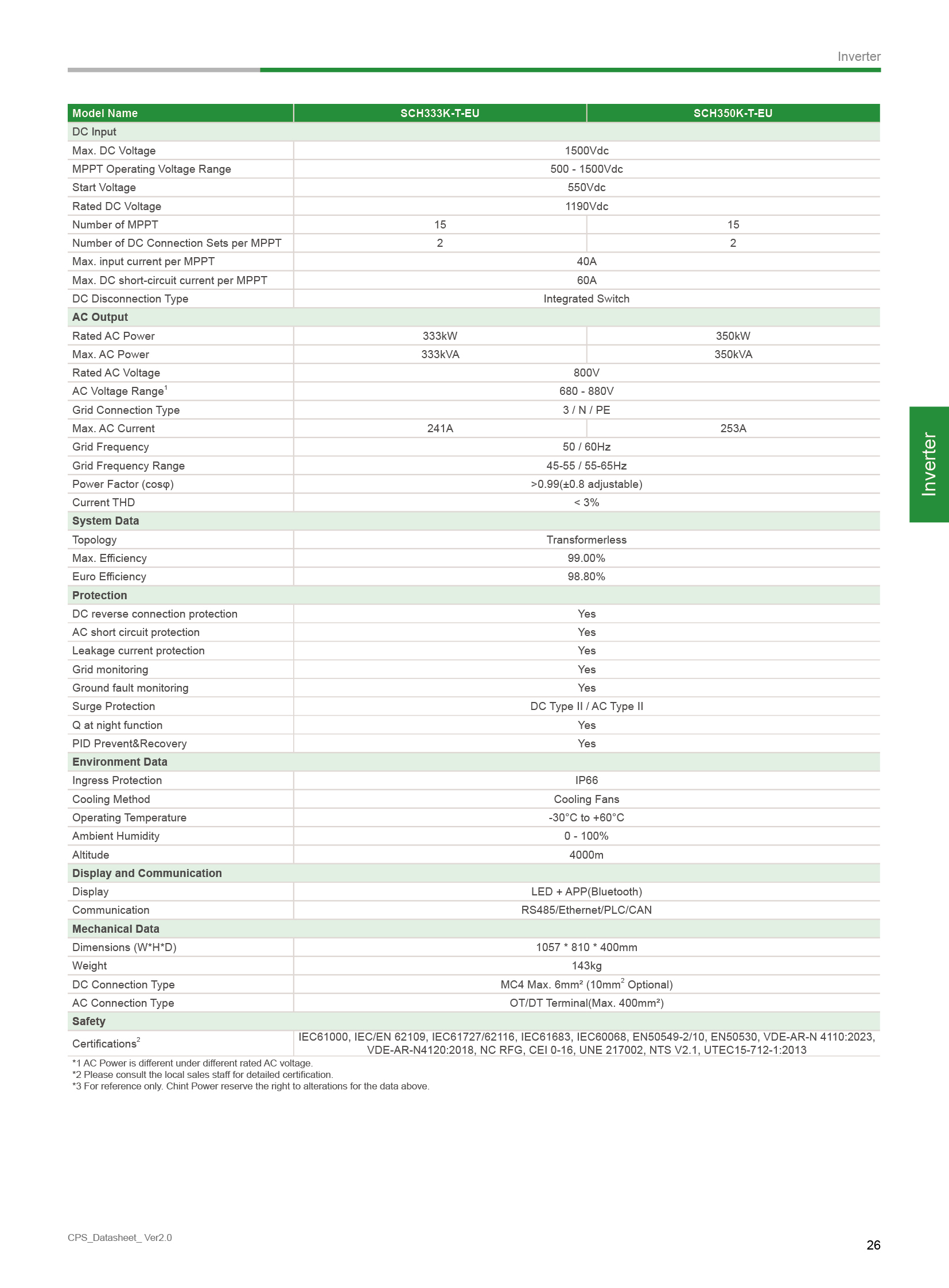

SCH333/350K-T-EU_PV Inverter_Datasheet_EN_Rev2.0Send to Email Download View
2025.06.05Size：281KB
