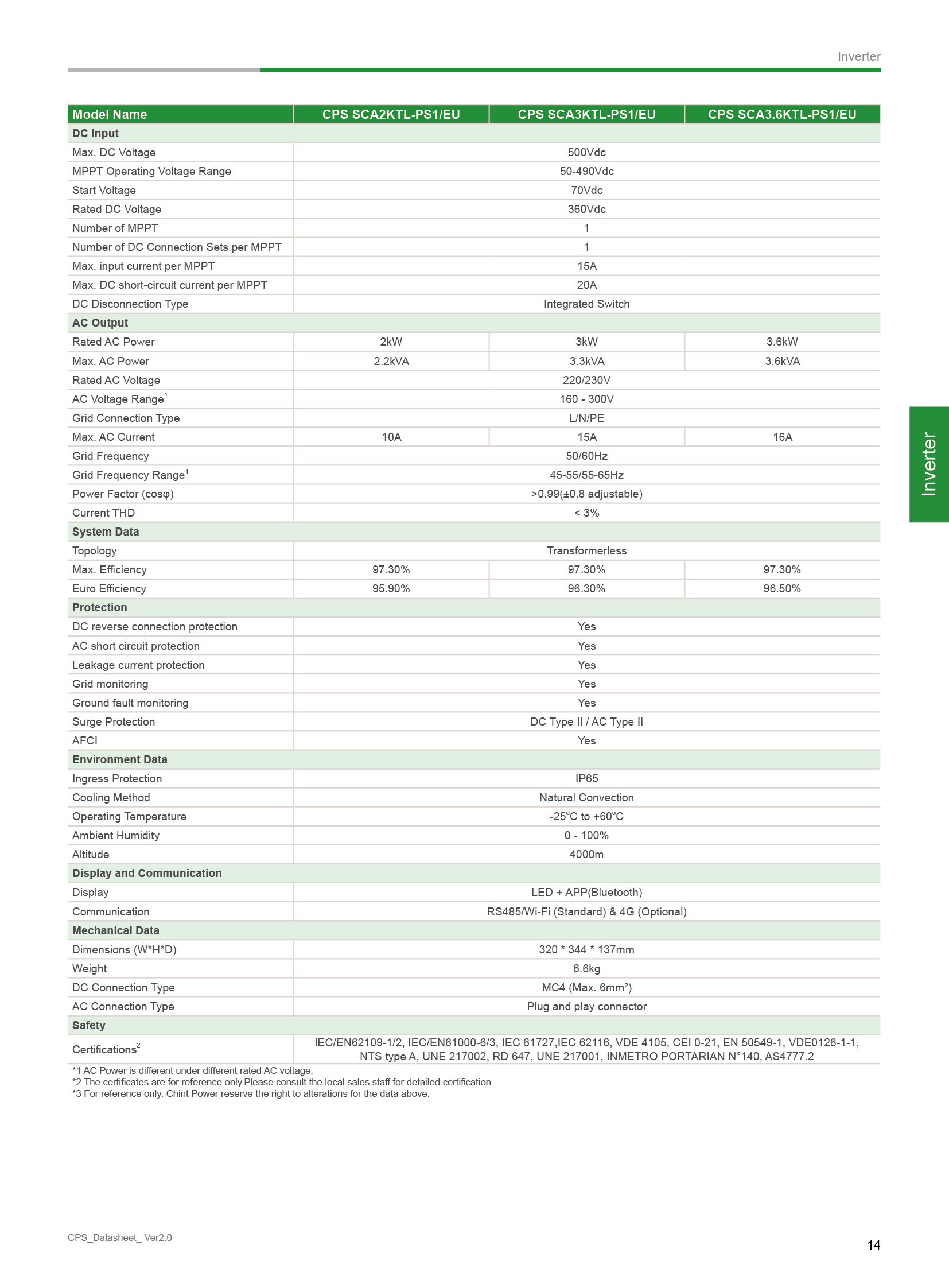

CPS SCA2~3.6KTL-PS1/EU
Single-Phase String Inverter 2~3.6kW • 1 MPPT • 500Vdc System
Efficient
1 MPPT with Max. Efficiency 97.30%;
Easily compatible with various PV module based on max. input current 15A per MPPT;
150% DC/AC ratio;
Lower startup & wider MPPT voltage
Easily compatible with various PV module based on max. input current 15A per MPPT;
150% DC/AC ratio;
Lower startup & wider MPPT voltage
Smart
Communication interfaces [RS485/Wi-Fi (Standard) & 4G (Optional)];
Built-in Bluetooth and App for local and remote monitoring;
Support zero export by meter
Built-in Bluetooth and App for local and remote monitoring;
Support zero export by meter
Safety
Durable and robust component;
IP65 &C5 protection;
Type II SPD for both DC and AC
IP65 &C5 protection;
Type II SPD for both DC and AC
