SCH333/350K-T-EU
Three-Phase String Inverter 333/350kW • 15 MPPTs • 1500Vdc System
Efficient
15 MPPTs with Max. Efficiency 99.00%;
Max. input current 20A per string,compatible with 700Wp+ module;
Superb temperature performance, full power at 45℃
Max. input current 20A per string,compatible with 700Wp+ module;
Superb temperature performance, full power at 45℃
Smart
Comprehensive range of communication interfaces [PLC /Wi-Fi / RS485(Standard)]；
Q at night (SVG) function;
I-V curve scanning and diagnosis
Q at night (SVG) function;
I-V curve scanning and diagnosis
Safety
IP66&C5 protection;
Built-in anti-PID and PID recovery function;
Smart DC controllable switch
Built-in anti-PID and PID recovery function;
Smart DC controllable switch
Document Read More >
-

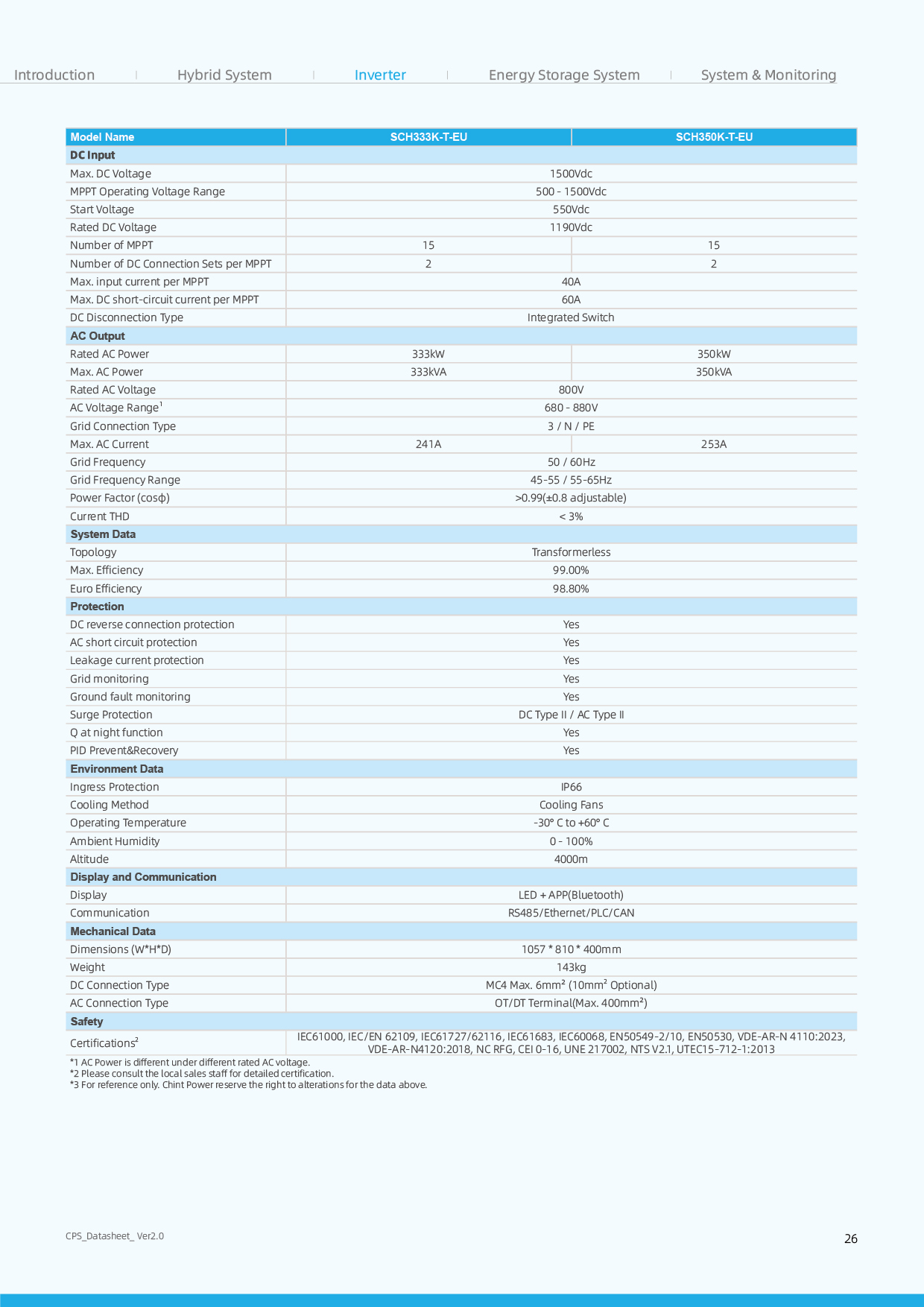

SCH333/350K-T-EU_Datasheet_EU_20260611Send to Email Download View
2026.06.12Size：181KB
